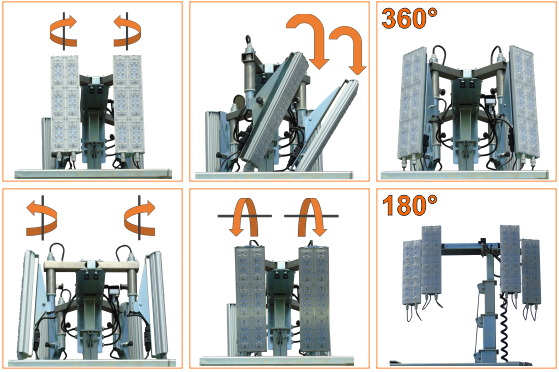

The special CUBE HYPER version by Generac Mobile® is a lighting tower equipped with the new Hyper® LED Technology allowing the operator to point the floodlights in every direction, to provide 360° illumination. Also available with anti-glare floodlights.
Digital controller
The CUBE Hyper is equipped with a digital controller specifically studied to manage every function of the light tower for the best ease of use.Top accessibility
5 wide doors for complete access to the technical area.Bolted frame
A bolted frame for a much better resistance to vibrations, wear, and rust. It offers the best reliability and durability in the industry.Liquid containment tank
A liquid containment tank to avoid any risk of leakages on the ground.Safe locking stabilizers
New adjustable locking system embedded in the machine frame. A step forward from competition standard locking system. No more removable external lockers: when CUBE HYPER doors are locked, it’s impossible to change position or even remove the stabilizers.
Minimum dimensions (L x W x H)
1230 x 1160 x 2405 mm
Maximum dimensions (L x W x H)
1790 x 1735 x 8400 mm
Dry weight
1070 kg
Lifting system
Hydraulic
Mast rotation
340°
Lamps power
4 x 320 W
Lamps type
LED (Hyper)
Total lumen
184000 Lm
Illuminated area
4500 m2
Engine
Kubota Z482
Engine cooling
Liquid
Cylinders (q.ty)
2
Engine speed (50/60 Hz)
1500 / 1800 rpm
Liquid containment (110%)
√
Alternator (kVA/V/Hz)
3.5/230/50 – 4.2/240/60
Outlet socket (kVA/V/Hz)
2/230/50 – 2/240/60
Inlet plug (A/V/Hz)
16/230/50 – 16/240/60
Avg. sound pressure
58 dB(A) @ 7m
Wind speed resistance
110 km/h
Tank capacity
170 l
Running time
243 h
Minimum dimensions (L x W x H)
1230 x 1160 x 2405 mm
Maximum dimensions (L x W x H)
1790 x 1735 x 8400 mm
Dry weight
1005 kg
Lifting system
Hydraulic
Mast rotation
340°
Lamps power
4 x 320 W
Lamps type
LED (Hyper)
Total lumen
184000 Lm
Illuminated area
4500 m2
Engine
Yanmar 2TNV-70
Engine cooling
Liquid
Cylinders (q.ty)
2
Engine speed (50/60 Hz)
1500 / 1800 rpm
Liquid containment (110%)
√
Alternator (kVA/V/Hz)
3.5/230/50 – 4.2/240/60
Outlet socket (kVA/V/Hz)
2/230/50 – 2/240/60
Inlet plug (A/V/Hz)
16/230/50 – 16/240/60
Avg. sound pressure
58 dB(A) @ 7m
Wind speed resistance
110 km/h
Tank capacity
170 l
Running time
243 h
