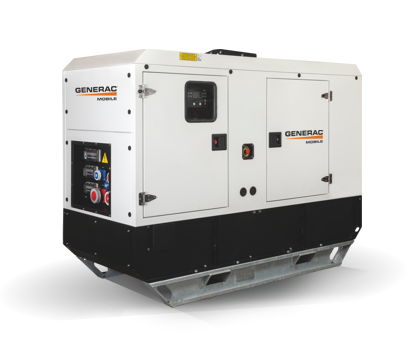

GMM-60P/FNE generator is part of the GMM Modular Line, a series of versatile and reliable mobile power generating sets. The GMM Series guarantees high-quality standards and reliability with a specific design suitable for mobile applications. The modular design allows high flexibility on the scope of supply, with a wide range of mechanical and electrical options. This model is available in Silent and Extra Silent versions, to satisfy global requirements and specific local needs.
Many options are available to complete the offer and “customize” a generator to meet customer’s needs.
POWER
-
-
Phases
-
3
Frequency
Hz
50
Voltage
Volt
400/230
Emergency Stand-by Power (ESP)e
kVA
66.3
-
kW
53.0
Prime Power (PRP)
kVA
60.1
-
kW
48.1
Power factor
cos
φ
0.8
ENGINE
-
-
Brand
-
Perkins
Model
-
1103A-33TG2
Fuel
-
Diesel
Displacement
cc
3300
Speed
rpm
1500
Cylinders
-
3 in line
Cooling system
-
Water
Starting system
-
Electric
Electric circuit
Volt
12
Aspiration
-
Turbocharged
Speed governor
-
Mechanical
Emission stage compliance (EU)
-
Non Emission Certified
ALTERNATOR
-
-
Brand
-
Mecc Alte
Type
-
Brushless
Poles
-
4
Voltage regulation system
-
Electronic
Protection
IP
23
CONSUMPTION
-
-
Fuel consumption at 75% of load
L/h
10.33
Fuel consumption at 100% of load
L/h
13.90
Tank type
-
PFT
MFT-XS
MFT-S
MFT-M
Running time at 75% of load
h
7.74
6.29
11.62
23.72
Fuel tank material
-
Plastic
Metal
Metal
Metal
Fuel tank capacity
L
80
65
120
245
DIMENSIONS AND WEIGHT
-
-
Canopy type
-
Silent
Extra-silent
Length
mm
2200
2200
Width
mm
1020
1020
Height
mm
1313
1904
Dry weight
kg
1220
1332
NOISE EMISSION
-
-
-
Noise pressure level at 7 m
dB(A)
65
62
