Solé Diesel

Solé Diesel is a family-owned company dedicated to the manufacture of engines for boats, marine generator sets and marine accessories. Founded more than 100 years ago, Solé Diesel offers customized products for both recreational and professional applications.

Products

imagen-FA0968_002-l
MARINE ENGINES
imagen-FA0638_001-l
MARINE GENERATORS
Accessories Pack
ACCESSORIES

Best Seller

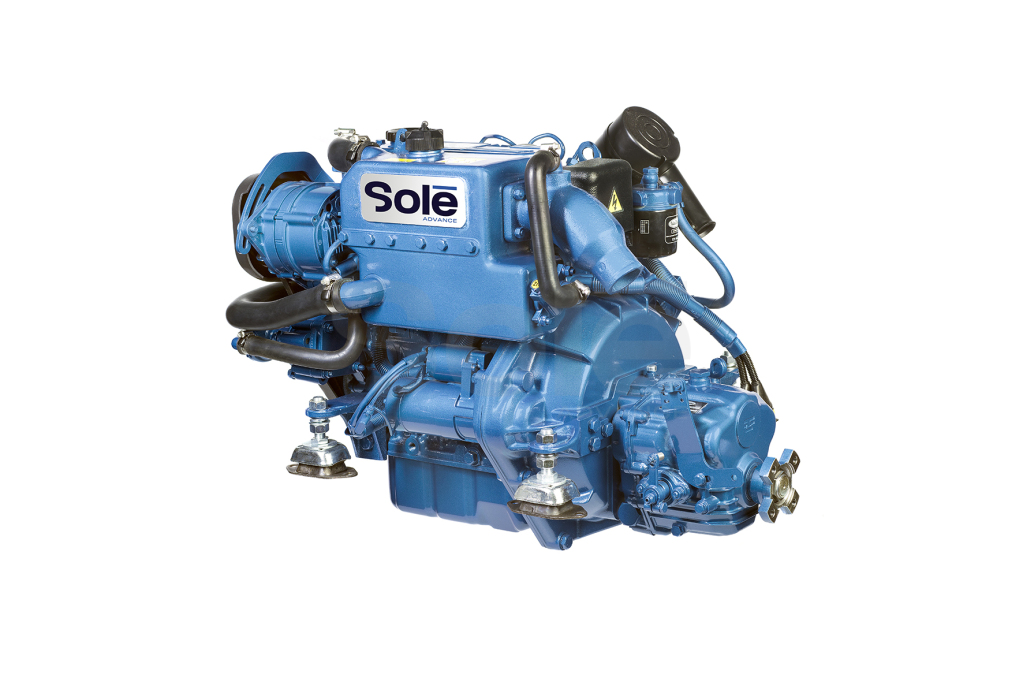

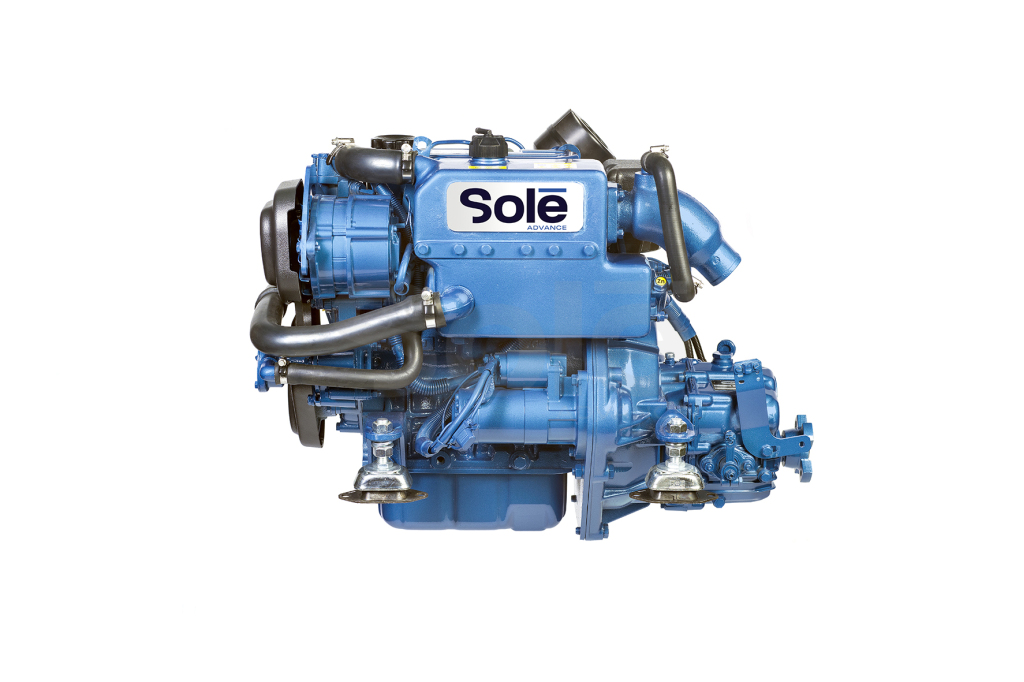

Solé Diese MINI-33-6

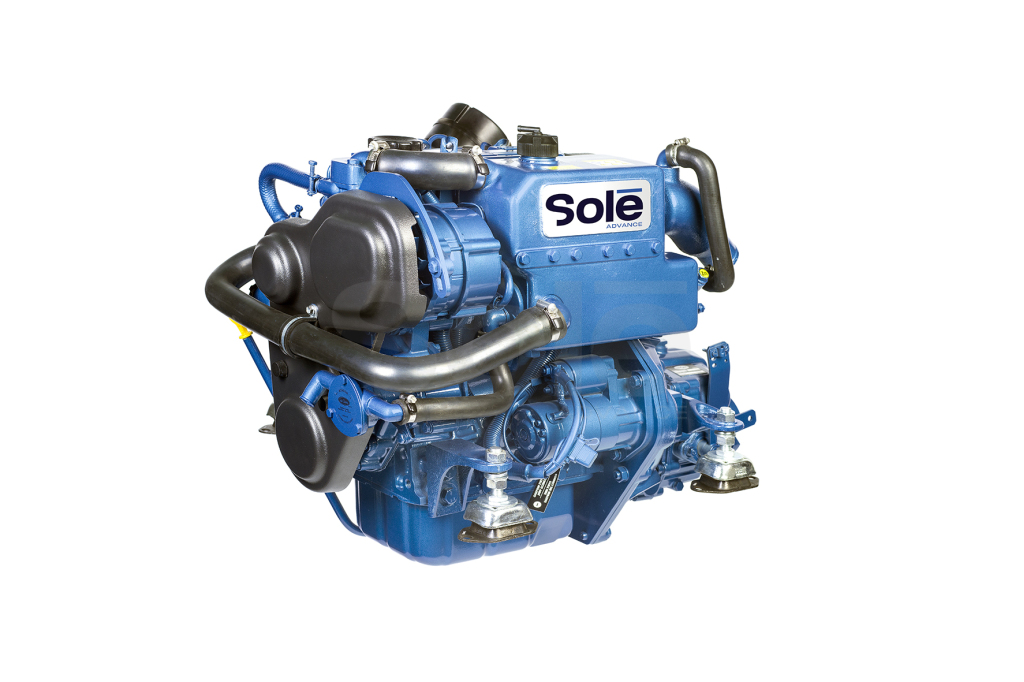

Solé Diesel marine engine MINI-33

Engines MINI-33 3 cylinders In line 31 HP (23,1 kW)

3000 RPM

The MINI-33 is a diesel engine for boat with Mitsubishi base, 3 cylinders, mechanical injection and 1.318 cc. It is the last model with 3 cylinders of the Solé Diesel MINI range, a compact engine with an ideal output prior to the 4 cylinders engine. Performs 31 hp at 3.000 rpm with mechanical injection and natural aspiration. This marine engine offers great durability and low consumption, very suitable for sailingboats and small fishing boats. There are multiple settings available as well as repowering adaptation kits for different benches and sail drive transmissions; complains with RCD II and BSO II, also available with SOLAS homologation.

Base engine

manufacturer

Mitsubishi

Intermittent power

31 HP - 23,1 KW

Max RPM

3000 RPM

Number of beats

4

Number of cylinders

3

Layout of cylinders

In line

Cylinder diameter

78 MM

Cylinder stroke

92 MM

Total displacement

1318 CC

Intake system

Naturally aspirated

Standard voltage

12 V

Certifications

SOLAS, EU: RCD II (DIR. 2013/53/EU), BSO II

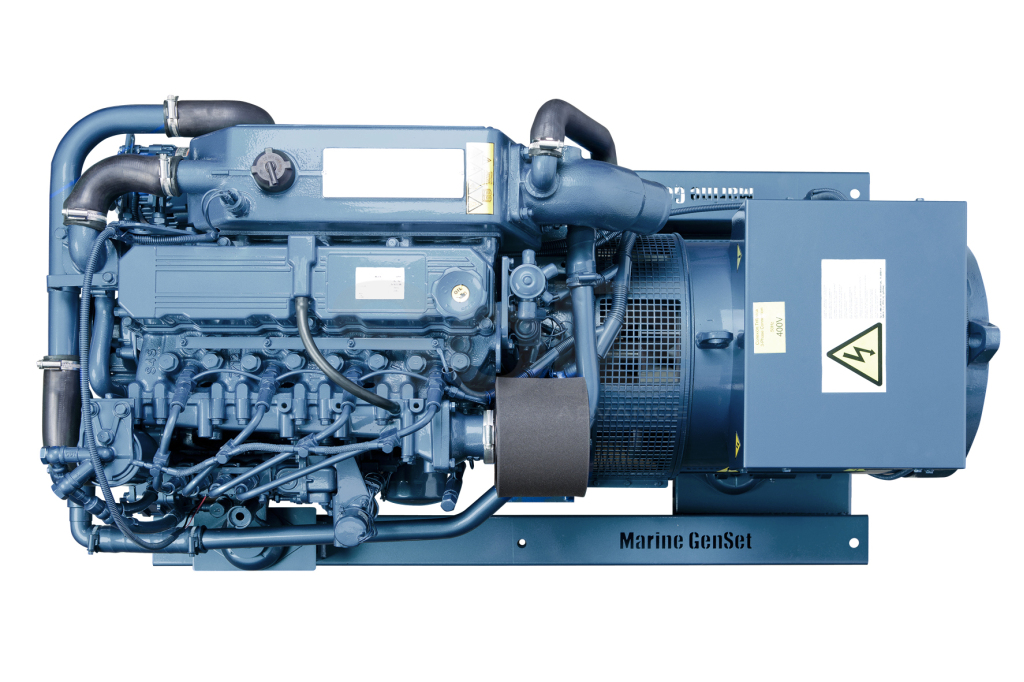

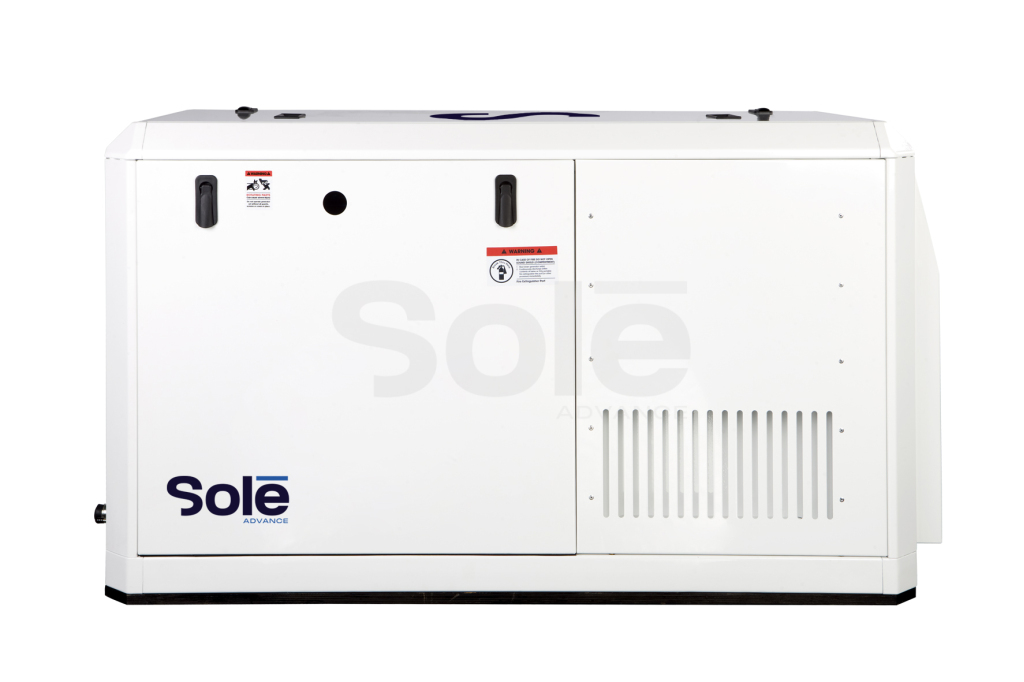

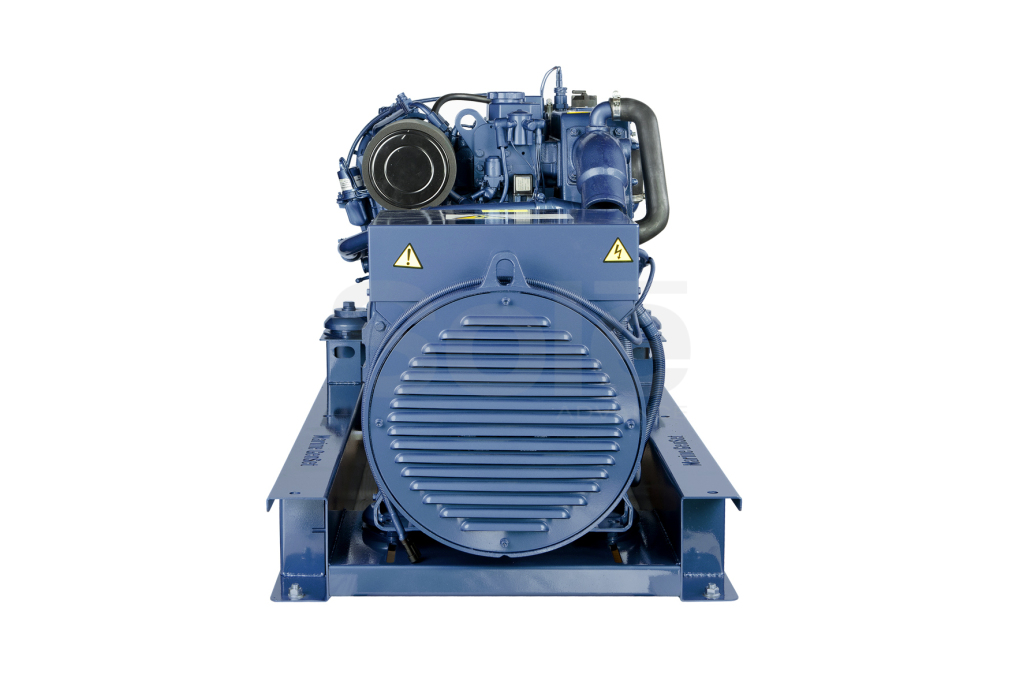

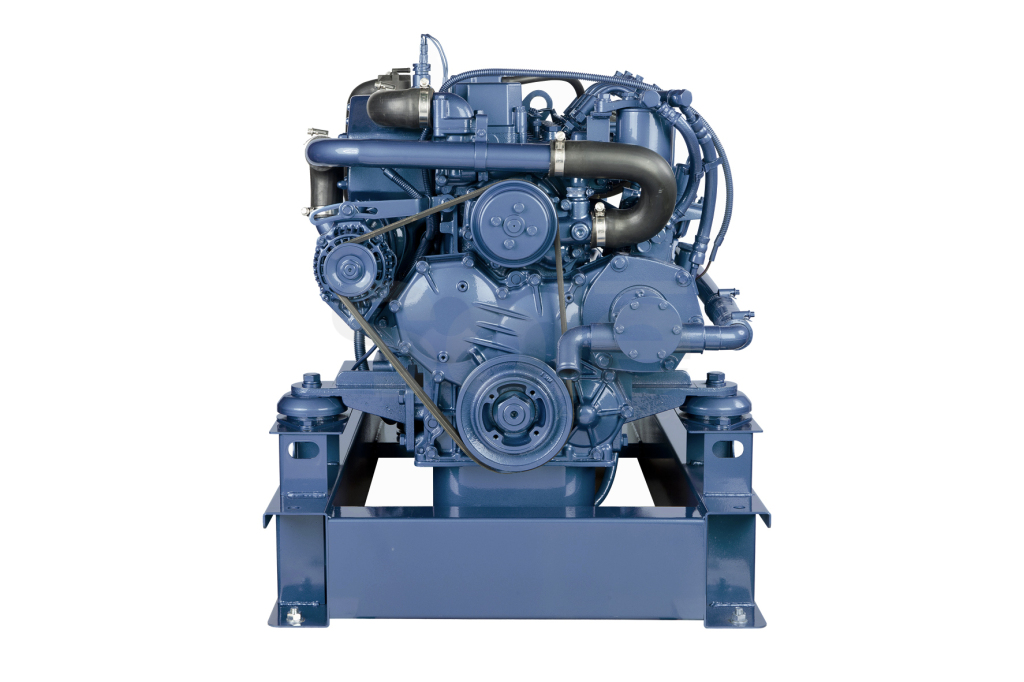

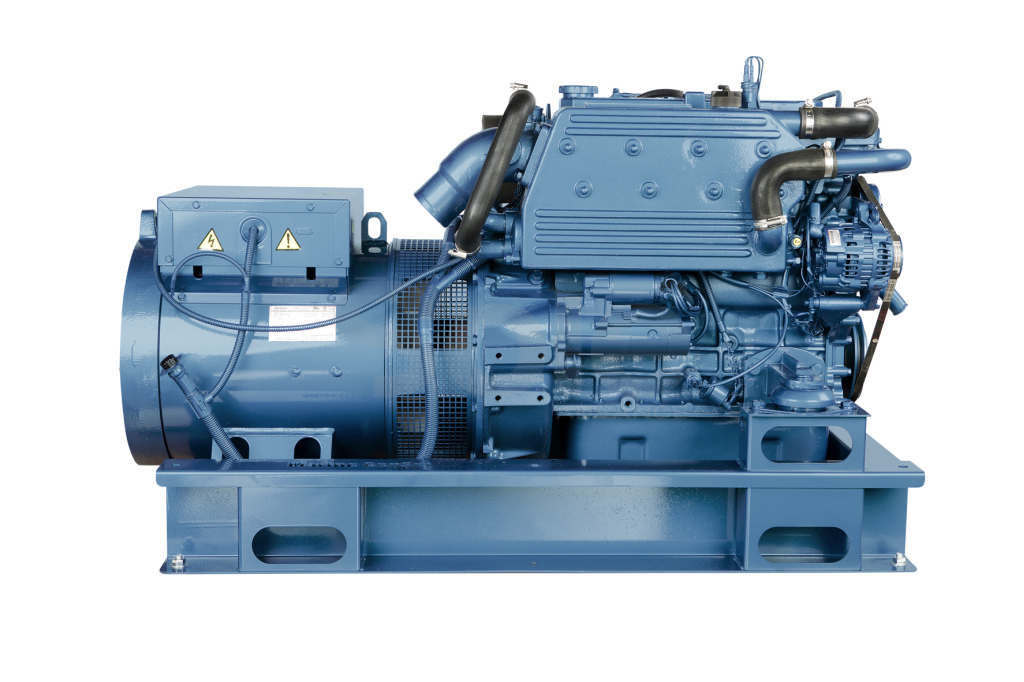

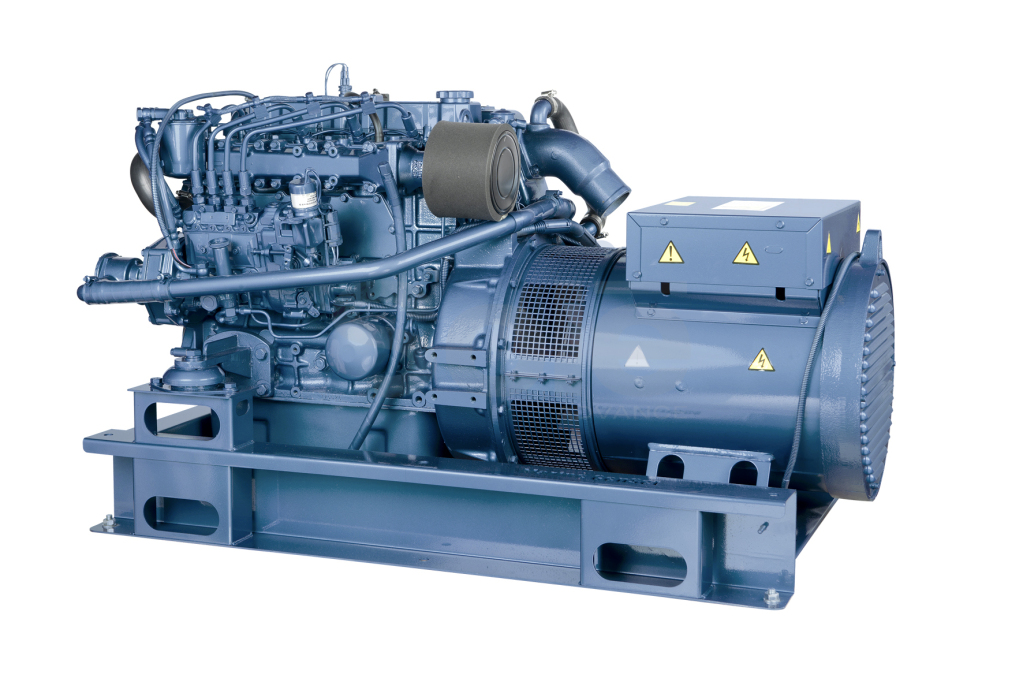

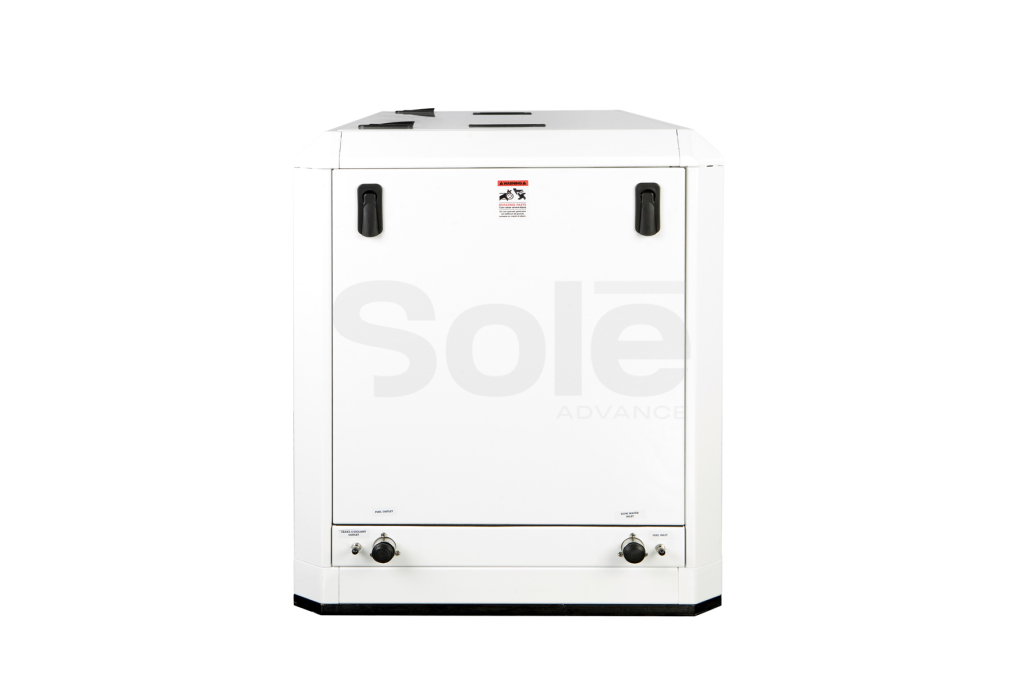

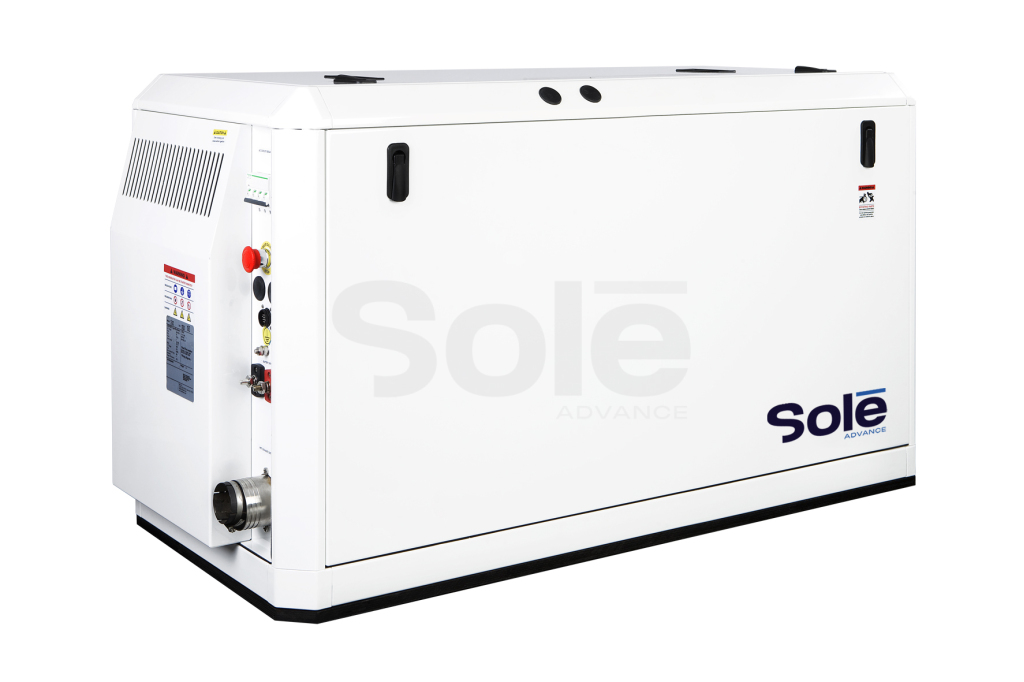

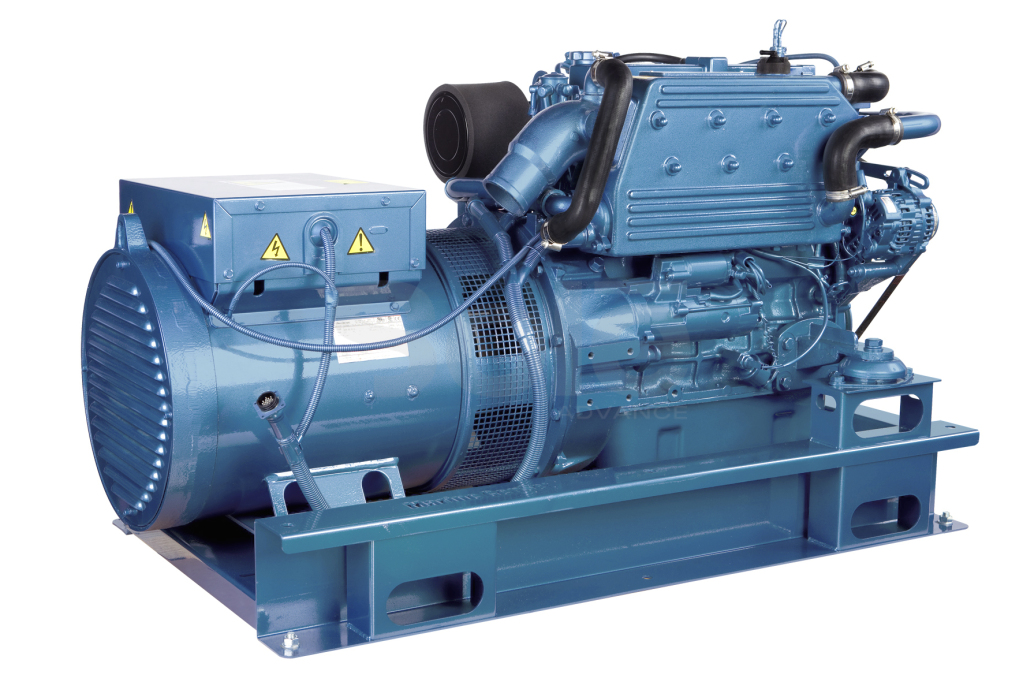

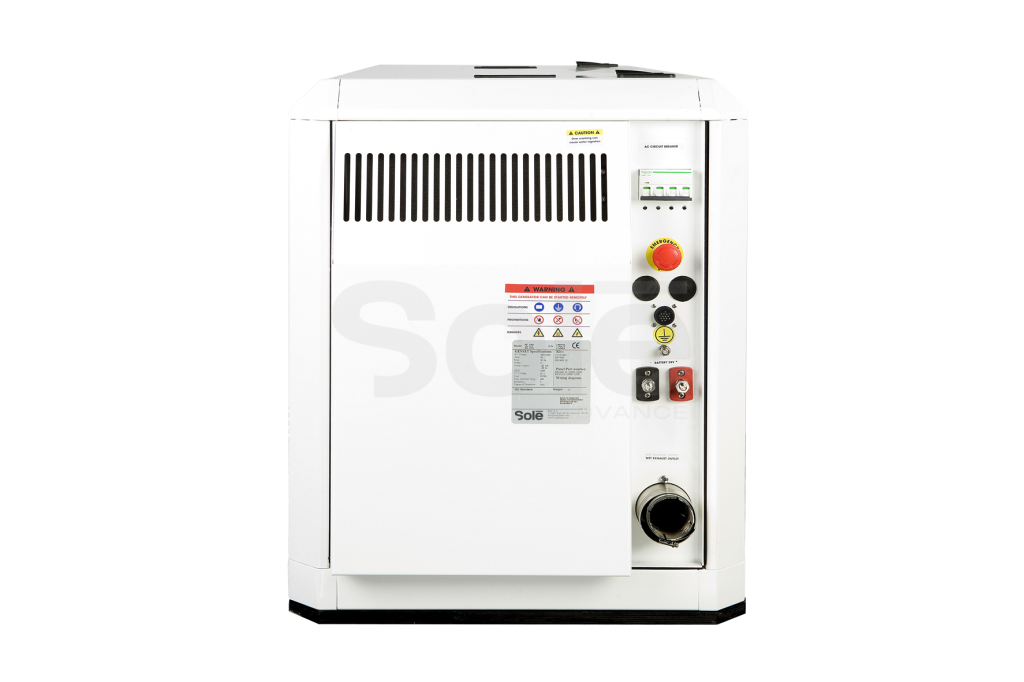

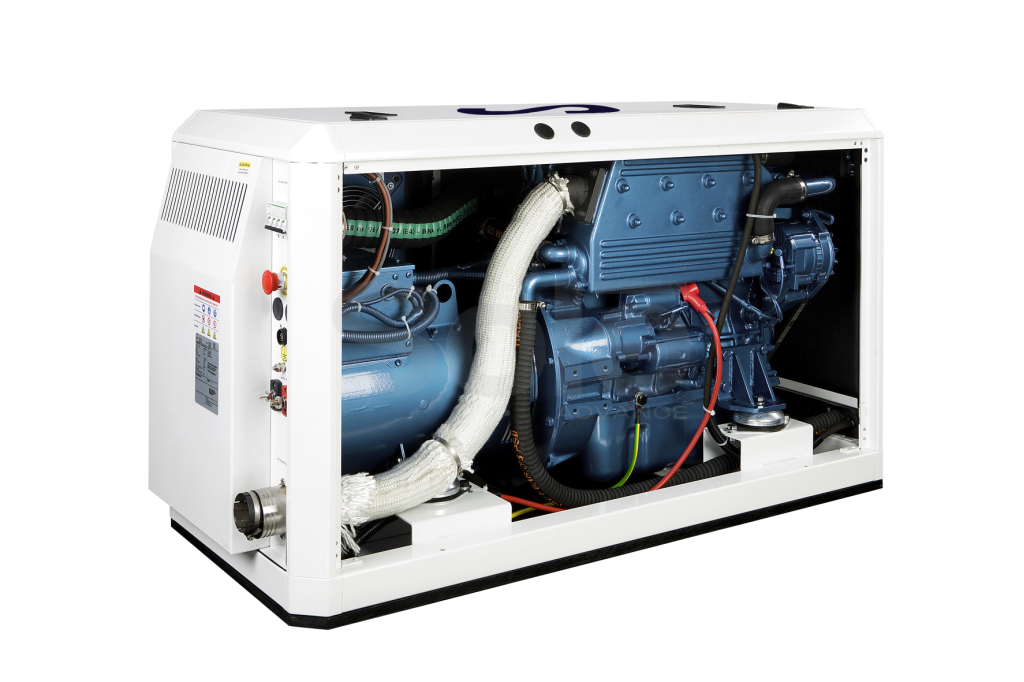

Solé Diesel marine generator 35 GT/GTC
Solé Diesel marine generator 35 GT/GTC

Marine generators 35 GT/GTC 35 kVA 1500 RPM

The 35 GT/GTC is the Solé Diesel's best seller marine generator set. This is a three phases generator set assembled on Mitsubishi block, which develops 28,0 kW - 35,0 kVA at 1500 rpm and 50 Hz. It fits very well on commercial boats with medium electrical requirement in restricted space. The 35 GT/GTC is also available with a wide variety of kits, with sound shield (canopy) for a noiseless navigation and Type Approvals from IACS.
KVA
35 KVA
Max RPM
1500 RPM
kW
28 KW
Frequency
50 HZ
Phases
Three-Phase
Total lenght with canopy
1445 MM
Total width with canopy
630 MM
Total height with canopy
788 MM
Total lenght without canopy
1308 MM
Total width without canopy
630 MM
Total height without canopy
732 MM

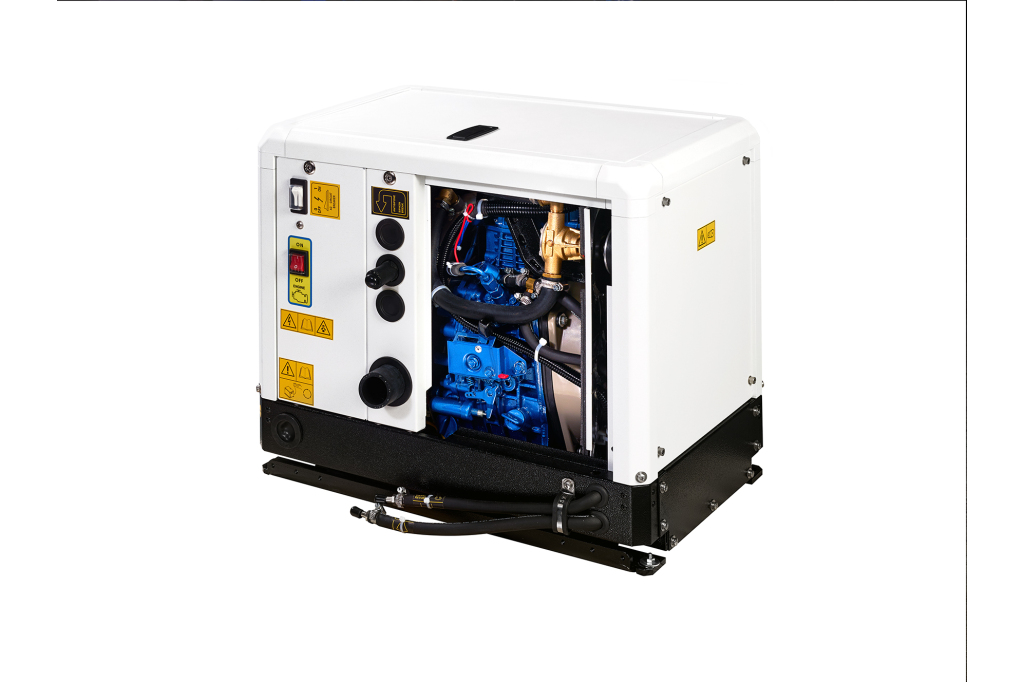

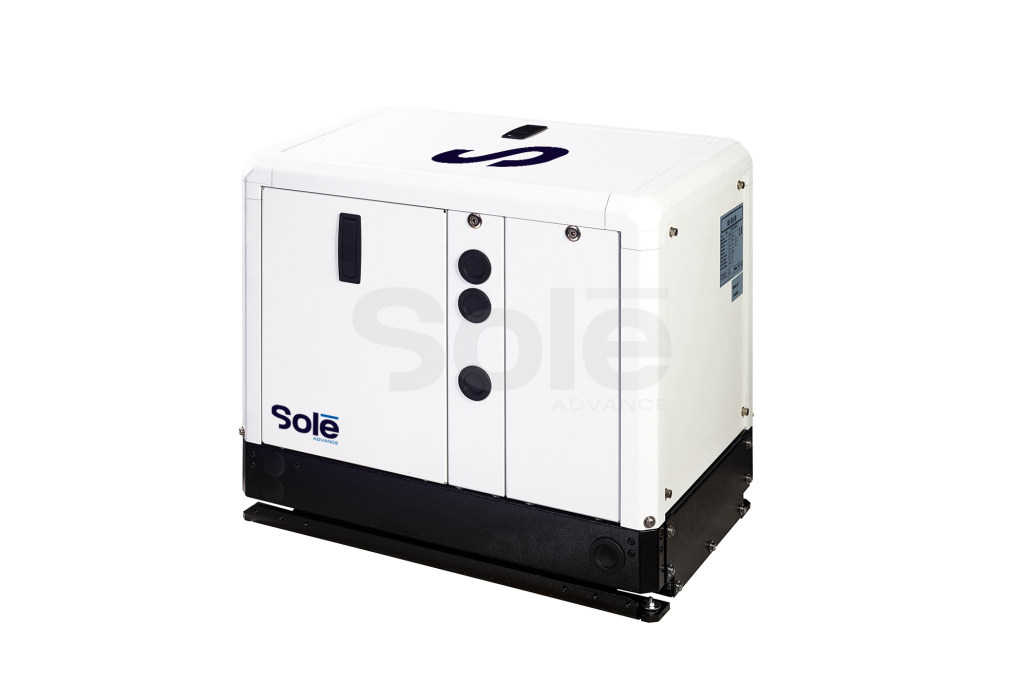

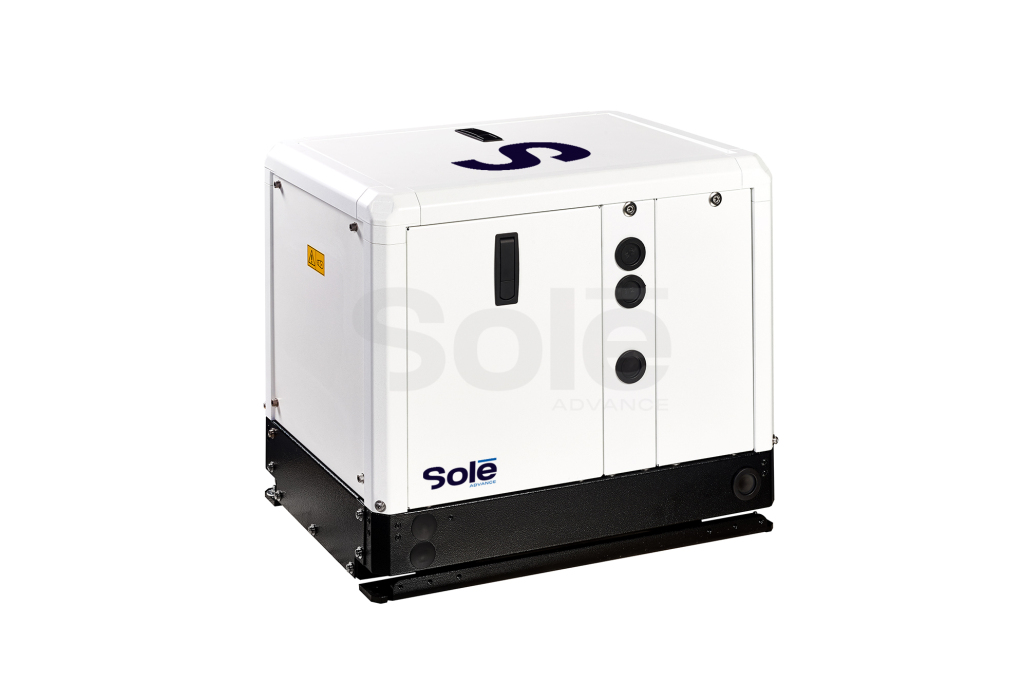

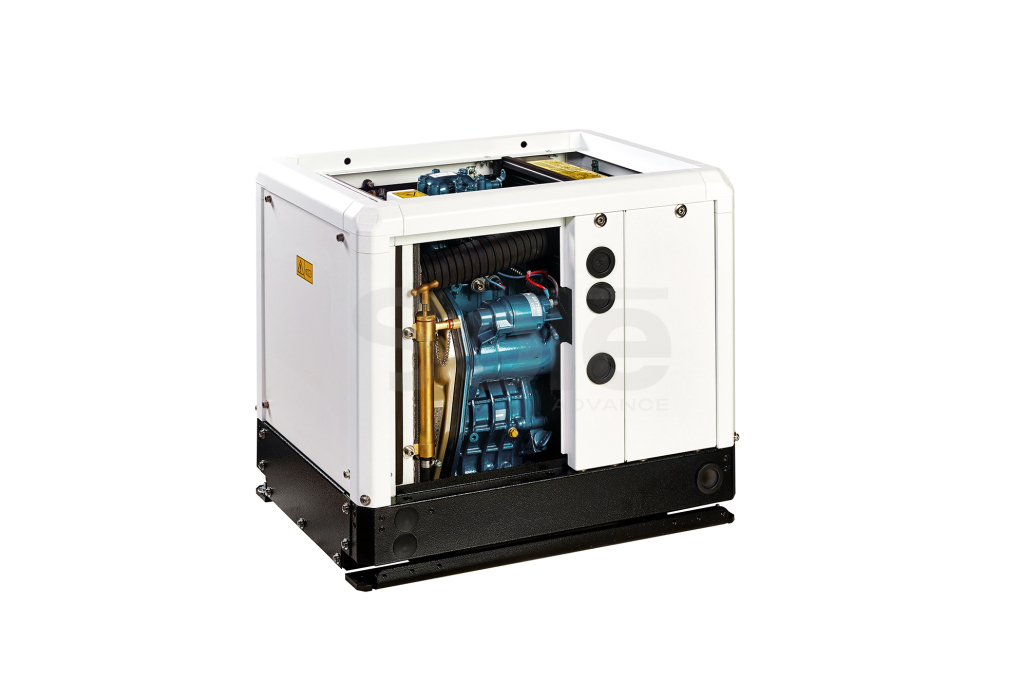

4 GSCH V3 - 1

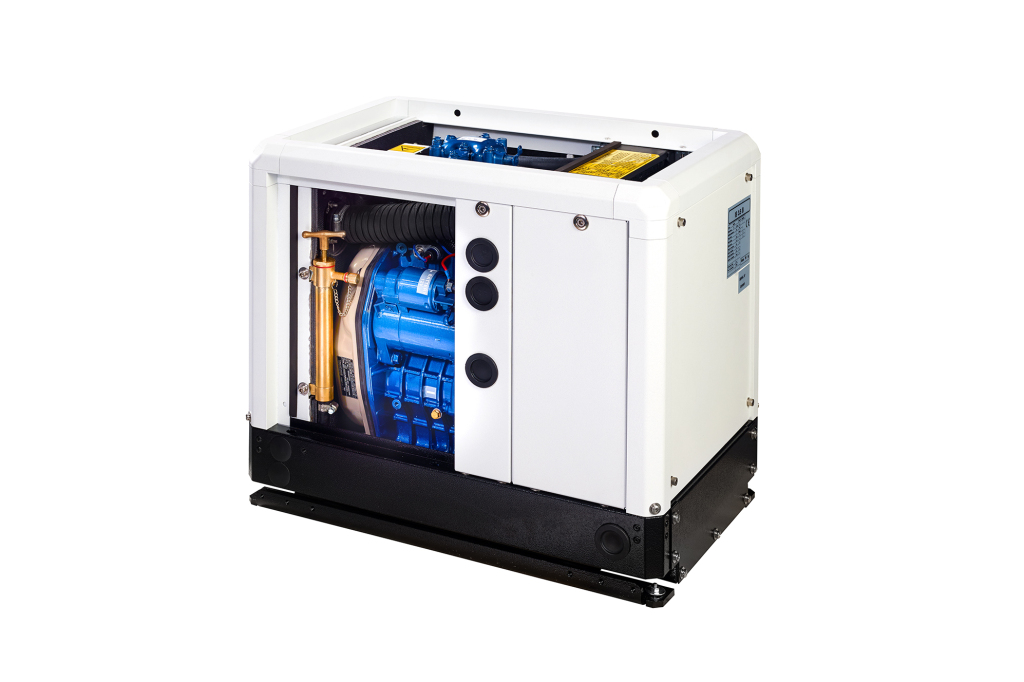

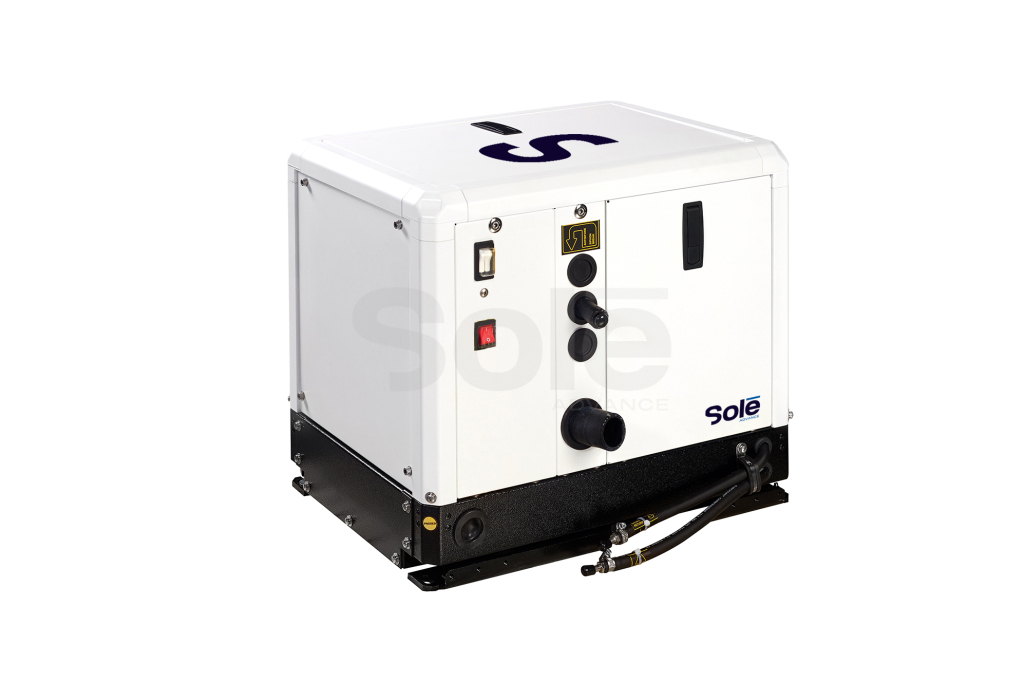

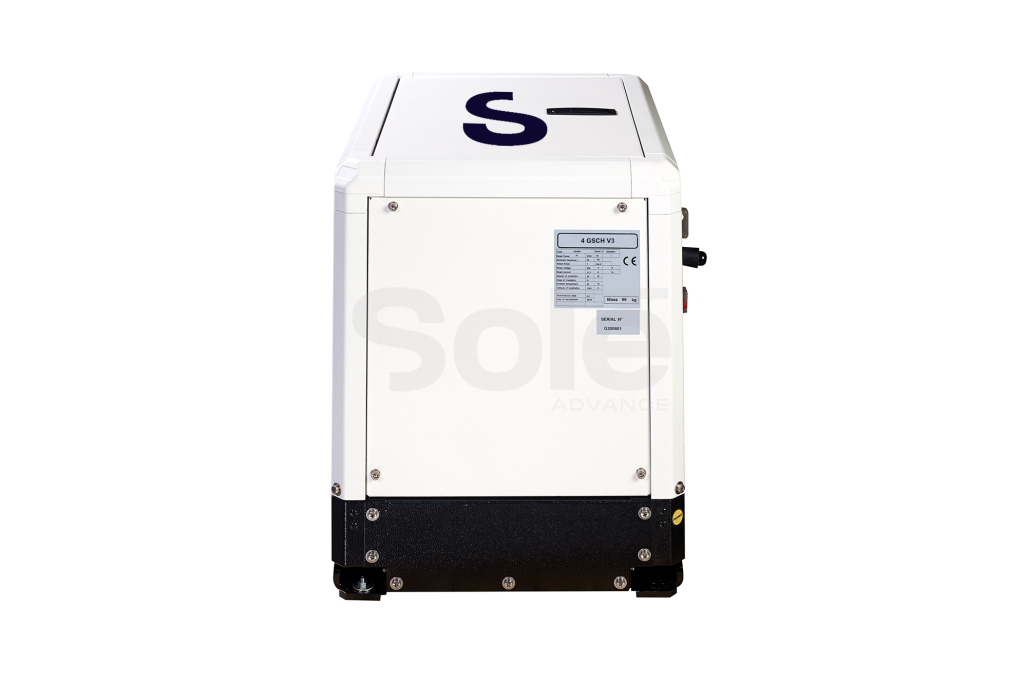

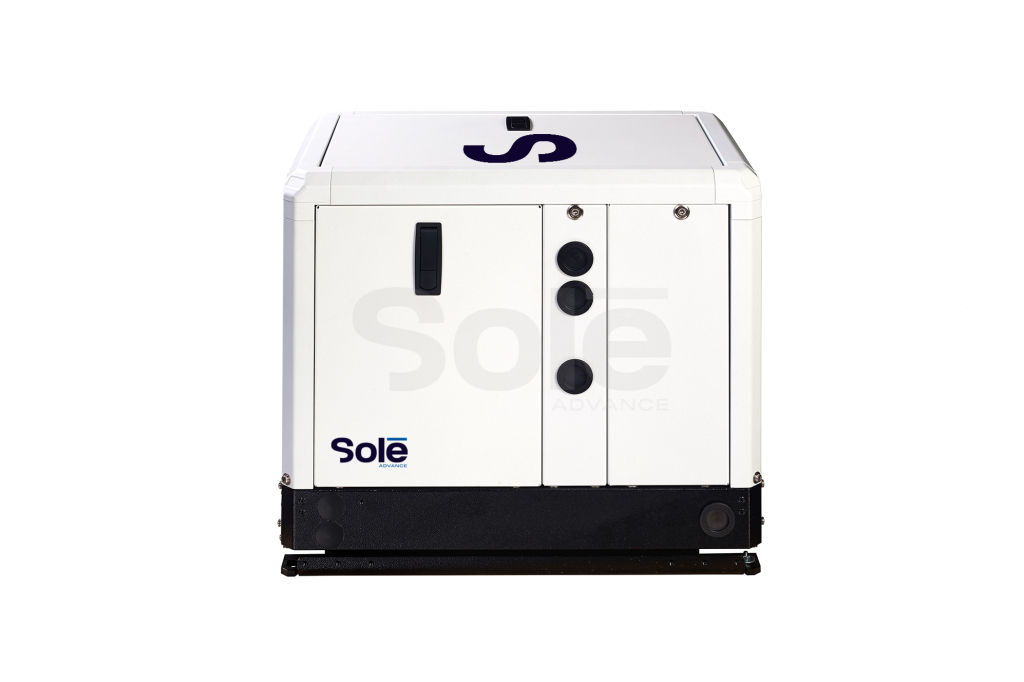

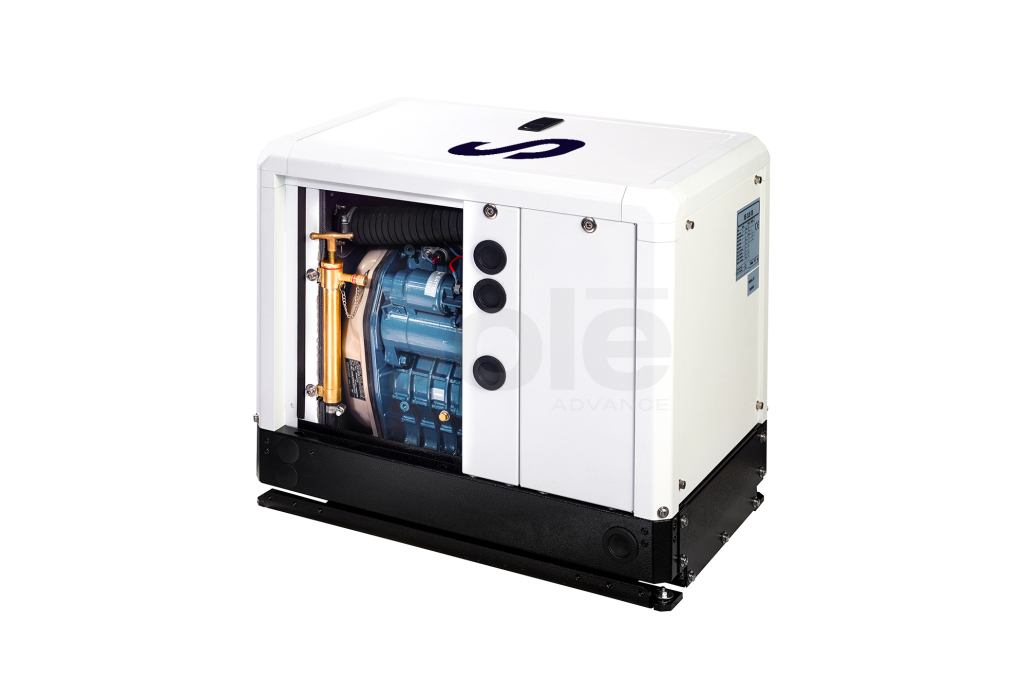

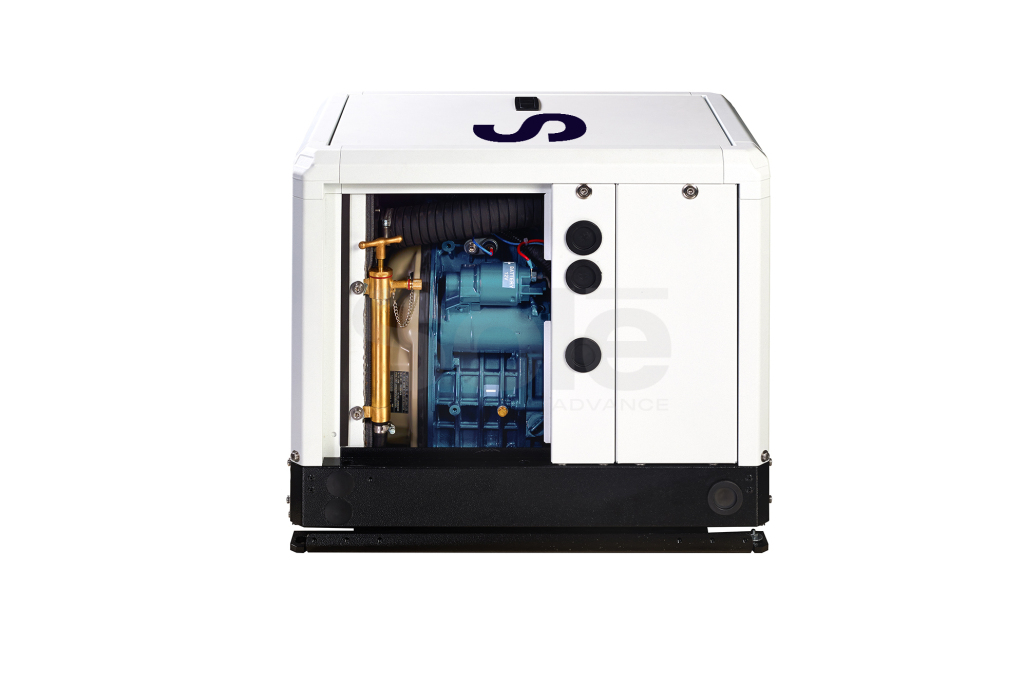

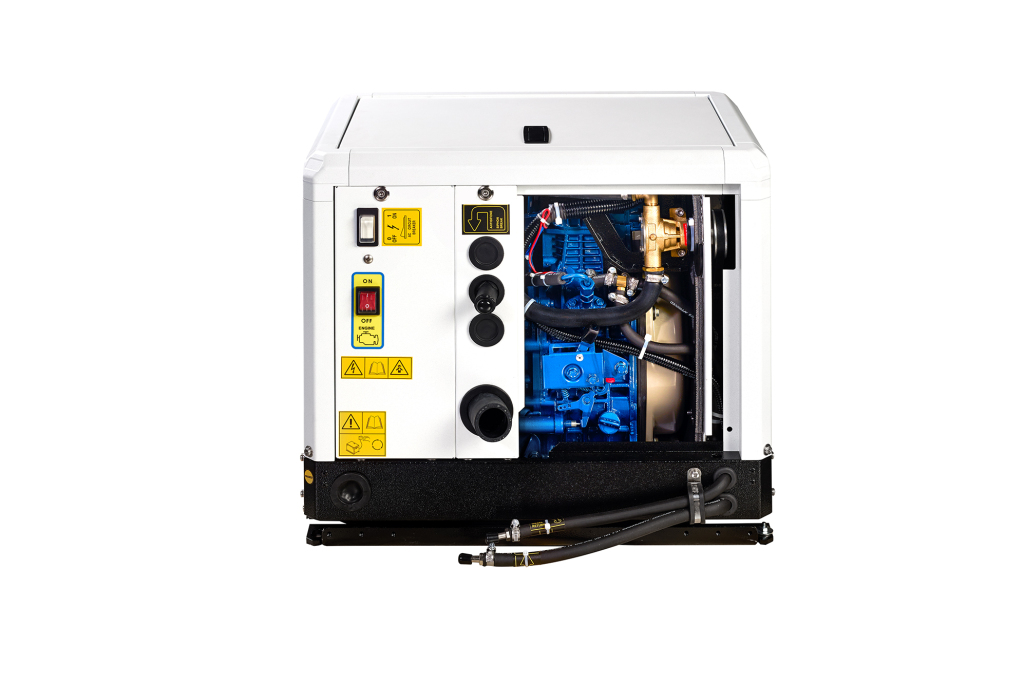

Solé Diesel marine auxiliary generator 4 GSCH V3

Marine generators 4 GSCH V3 3 kVA 3000 RPM

The 4 GSCH model is an ultra-compact genset for either sailboats or motorboats. With its reduced dimensions, genset can be easily mounted on any free space available. Noiseless and stable. The genset has an easy removable cabin which allows to do any necessary maintenance like oil and filter service. This marine generator is the perfect complement which provides to navigators with full autonomy. It supplies energy to the water purifier, the air conditioner and the whole electrical needs of the sailboats and motorboats.
KVA
3 KVA
Max RPM
3000 RPM
kW
3 KW

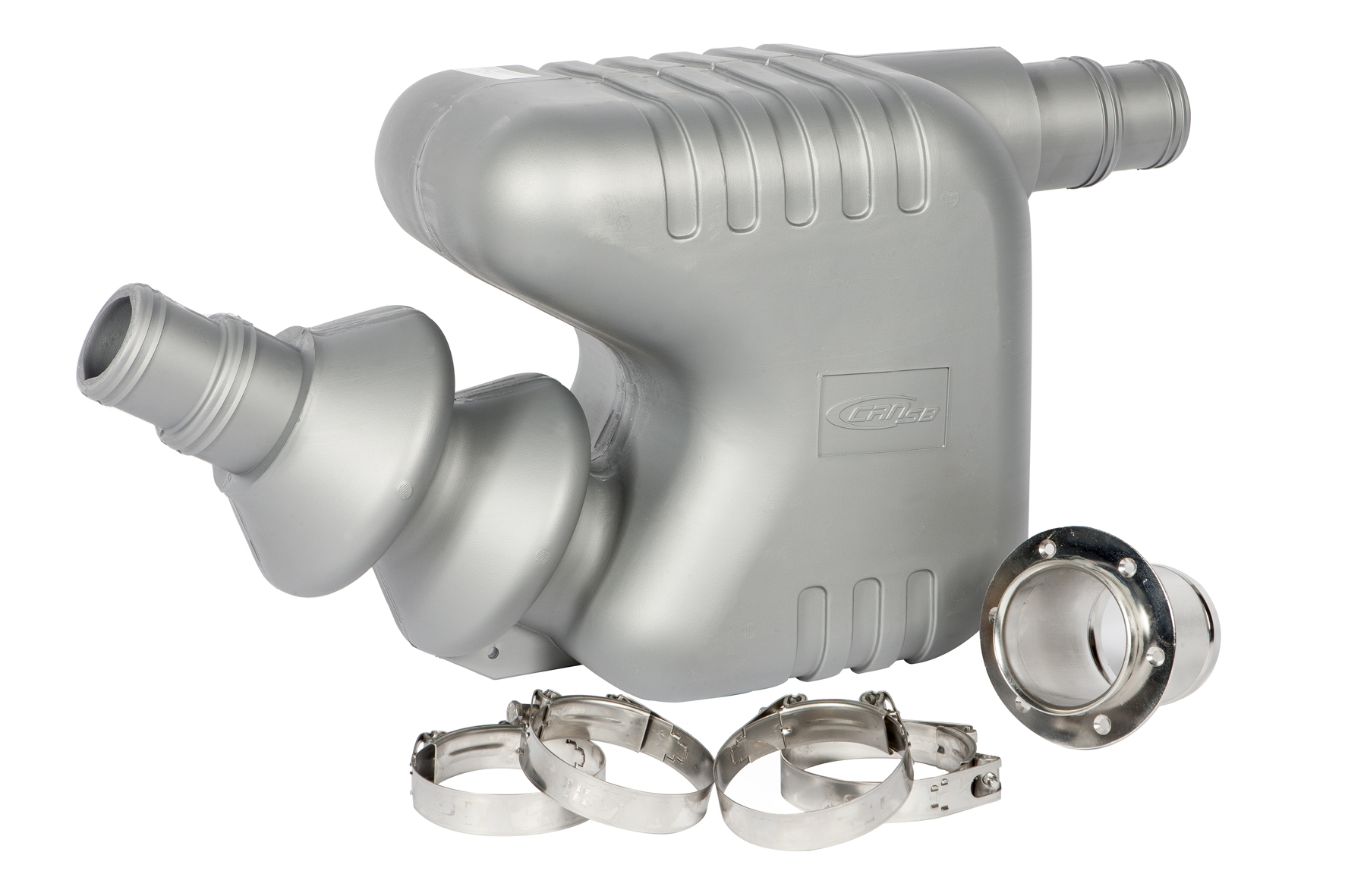

Exhaust Pack
Exhaust pack accessories - Marine engine accessories

Accessory pack

These exhaust kits are composed of a waterlock, connection brackets,and a transom exhaust connection.Hose not included.
Part Number
Description
Diameter
60739040
Exhaust Waterlock Pack D.40
40 MM
40 MM
607D0040
Exhaust Waterlock Pack D.45
45 MM
45 MM
60772040
Exhaust Waterlock Pack D.50
50 MM
50 MM
60771040
Exhaust Waterlock Pack D.60
60 MM
60 MM
60774040
Waterlock Exhaust Pack D.75
75 MM
75 MM
60794040
Waterlock Exhaust Pack D.90
90 MM
90 MM
